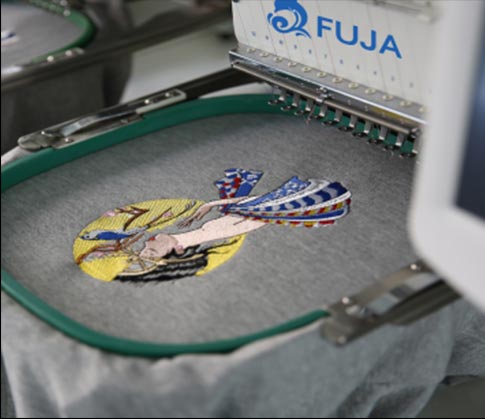

Computerized embroidery machines stitch designs or lettering from prepared files onto suitable materials. The file, frame, thread, needle and fabric work together. This overview explains machine types, controls, parts and product checks so you can compare equipment for your own work.
Understanding Older and Newer Equipment
When reviewing older or newer equipment, check its controls, pattern input and service options. Age alone does not show whether it suits your work. Ask for the exact model documents and a sample made under relevant conditions.
1. Manual Operation
For equipment that needs manual control, ask which movements and steps the operator must perform. Check the skills, setup time and sample quality needed for your products. Do not judge equipment from a historical label alone.
2. Powered and Computerized Equipment
Powered and computerized equipment may use different controls and file workflows. Confirm the functions of the exact machine, including what operators prepare and what the controller runs. Compare full job cycles and finished samples.
Machine Types
Compare machines by operation, needle count, head count and intended work. These are separate features. Confirm the exact configuration before using a category name to select equipment.
1. Operation and Controls
- Manual equipment: Check which steps need operator control and what skills the work requires.
- Powered equipment: Confirm which movements are motor driven and which steps remain manual.
- Computerized equipment: Confirm the file formats, controls and automatic functions included in the exact model.
2. Needle Count
- Single needle machines: One thread color is loaded at the needle. Designs with several colors may require manual thread changes as directed by the machine workflow.
- Machines with several needles: More thread colors can stay loaded. The machine normally selects the required needle in sequence; this does not mean several colors are stitched at once by one head.
3. Intended Work
- Industrial equipment: Compare the listed head counts, frames, controls and site needs with your repeat orders and workload.
- Home equipment: Review dimensions, product fit, controls and the resources needed to learn the exact model.
How Machine Embroidery Works
The machine follows stitch instructions while the needle and frame move in a controlled sequence. The prepared file and setup affect the finished result. Check the model manual for the actual mechanism and operating steps.
1. Moving Parts
Needle, hook and frame systems work together to form stitches on equipment designed for that process. Drive arrangements vary by machine. Operators should use the manual and keep clear of moving parts rather than adjusting internal timing.
2. Controller and Design Files
Digitizing software prepares stitch instructions from artwork. The controller reads supported files and runs the design. Check file size, colors, orientation and starting position before sewing. Controller editing tools depend on the exact version.
3. Stitch Structure
Designs can use running stitches, satin columns and fill areas when the equipment and file support them. Different stitch effects need suitable preparation and materials. Do not assume a standard machine can produce every type of stitch mechanism.
Main Parts to Understand
Use the model manual to identify parts and the checks assigned to operators. Knowing a part’s name does not authorize repair or adjustment.
1. Needles and Needle Bars
Needles carry thread through the material, and the needle bar controls their movement. Confirm needle type and size for the model, thread and fabric. Follow the manual before inspecting or replacing a needle.
2. Upper Thread and Bobbin System
On machines that use upper and bobbin thread, both affect the stitch result. Check threading and bobbin installation in the model manual. Do not assume every machine uses the same hook or bobbin arrangement.
3. Frame Movement and Drives
The frame movement follows the design path on supported equipment. Motor and drive types vary by model. Check clearance and mounting as instructed, and leave internal drive adjustments to qualified service staff.
4. Control System
Confirm the controller name, version and supported files for the machine. Design software and the machine controller have different roles. Ask which tools are included, which are sold separately and how approved files reach the machine.
Products to Review
Clothing, home textiles, decorative items and logos require different preparation. Check the actual material, design and equipment for each planned product.
1. Clothing
For shirts, jackets or caps, check design placement, access and the required frames. Test the actual fabric and construction. Product names alone do not confirm machine compatibility.
2. Home Textiles
For bedding, cushions or curtains, check design size, material handling and care requirements. Confirm that the setup can hold the item securely and leave enough space for movement.
3. Decorative Work
Wall hangings, table linens and other decorative items need approved artwork and sample checks. Compare appearance, backing and finishing with the intended use.
4. Logos and Badges
Check permission to use the artwork, then approve size, colors and lettering on a sample. Confirm the item and attachment method before producing badges, flags or branded products.
Production Factors to Compare
Judge equipment using finished pieces and complete job cycles. Include preparation, operator work, stops and inspection in the comparison.
1. Cycle Time
Measure a relevant design from preparation to finished inspection. Rated speed alone leaves out hooping, changes and handling. Use repeated tests to understand your workflow.
2. Sample Quality
Check placement, coverage, lettering and fabric movement on the actual material. Compare accepted samples with your quality requirements. Computer control alone does not guarantee every piece will match.
3. Design Options
Review the colors, stitch effects and file changes needed for your products. Test them with the planned thread, needle, backing and equipment. Confirm any extra tools or attachments.
4. Full Job Costs
Compare machine and setup costs with labor, materials, software, maintenance, rework and selling costs. Use actual order data and conservative assumptions. Automation does not by itself prove savings or payback.
5. Service and Planned Workload
Confirm the workload, operating limits and maintenance requirements for the exact model. Review service access and parts
terms. Keep records of stops and accepted output so equipment decisions reflect your actual
production.
